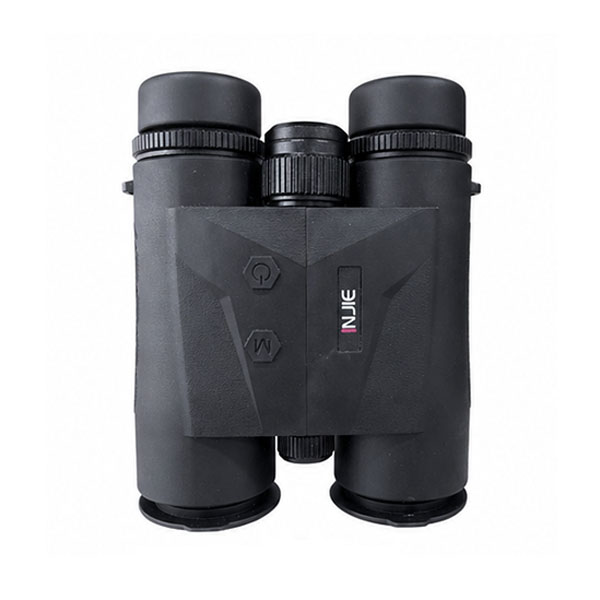

YJ-1500LRF Dual-tube Laser Range finder Telescope
The Yingjie YJ-1500LRF binocular laser rangefinder features a built-in angle sensor and high-transparency LCD display, enabling users to instantly obtain both distance and angle measurements while observing targets. It offers two measurement modes—single-measurement and continuous measurement—with unit switching between meters and feet.
name | Double-tube laser ranging telescope |
product model | YJ-1500LRF |
multiplying power | 10× |
Objective lens aperture | 21mm |
Objective lens aperture | 42mm |
field of view | 6.1° 106.6m @1000m 319.6ft @1000yds |
Recent focus distance | 3m /9.8ft |
exit pupil diameter | 4.25mm |
Outward gaze distance | 15.1mm |
relative brightness | 18.06 |
Dawn Index | 20.49 |
Prism Material | BAK4 |
laser wave length | 905nm |
Laser emission power | <1mW |
Laser Grade | CLASS I |

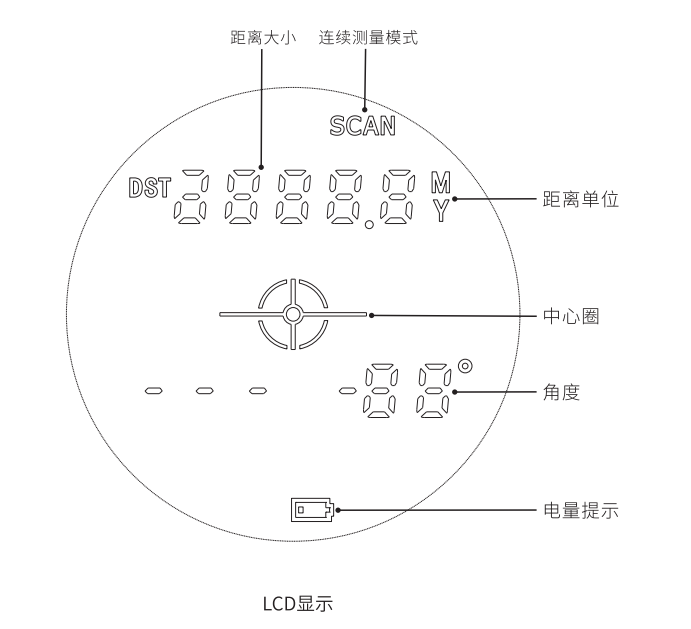

Range Measurement Display | Black LCD screen with high transparency |
Range Measurement Accuracy | ±0.5m+1‰ |
Range Measurement Range | 1500m |
angle | ±90° |
size | 146mm×111mm×51mm |
net weight | 785g/810g |
Battery Specifications | CR2 |
working temperature | -20℃~60℃ |
