Laser Rangefinder

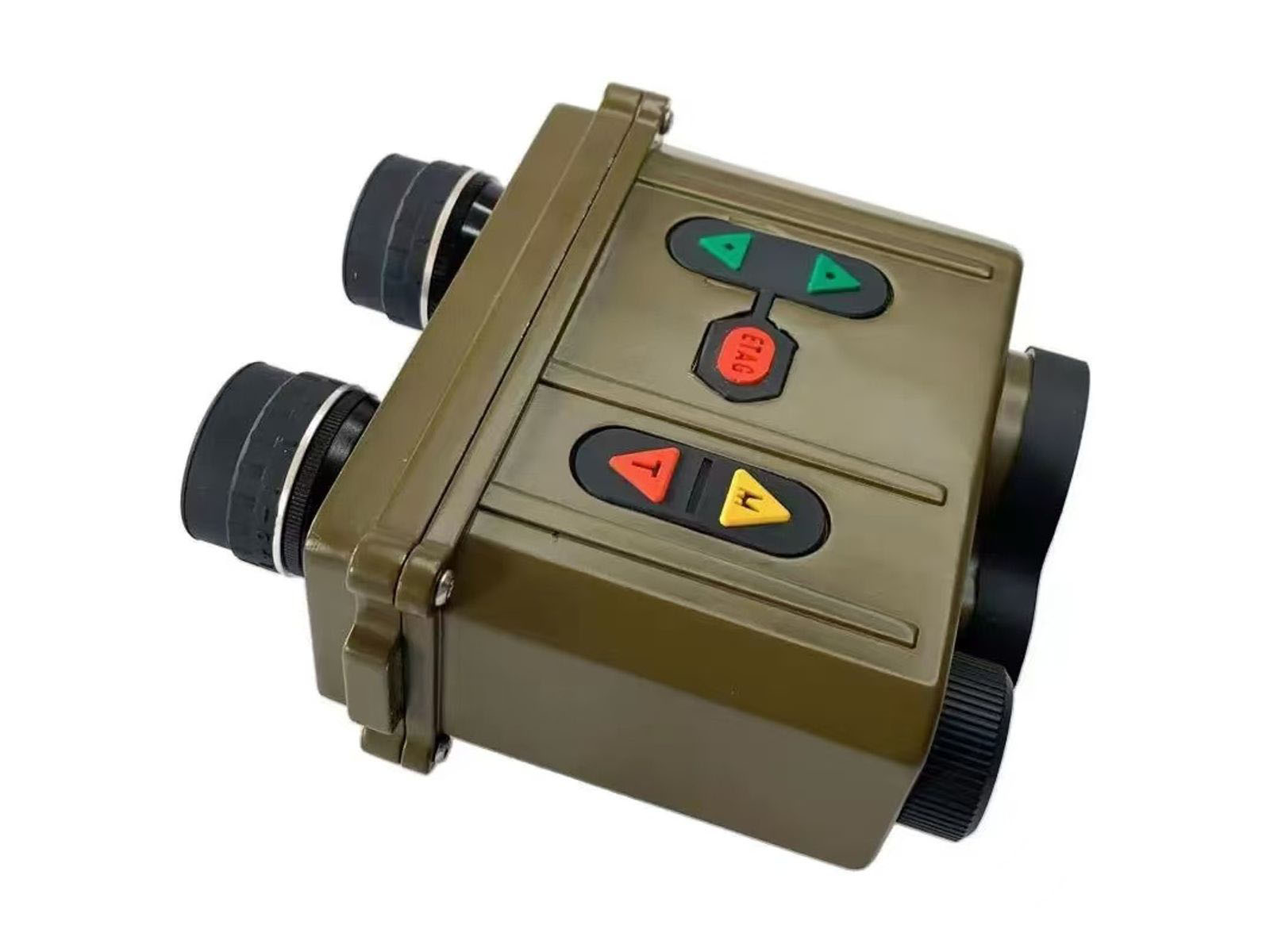

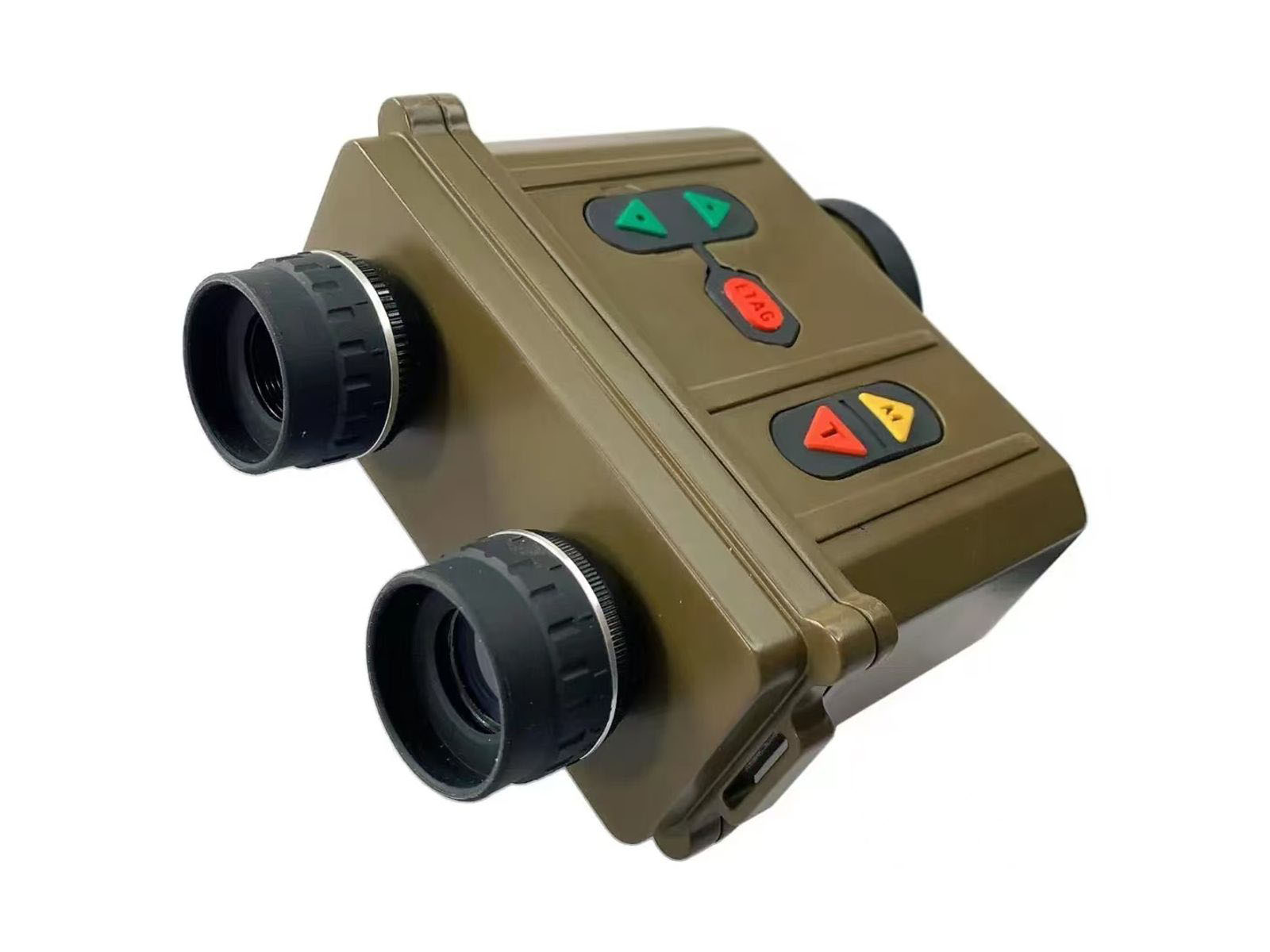

INJIE 10000BDR-L Binocular Long-Range Laser Rangefinder

The INJIE 10000BDR-L is a professional binocular long-range laser rangefinder, designed for outdoor, security, and industrial applications. It provides accurate distance measurement up to 4000 meters, allowing users to precisely monitor and assess distant targets.
Description Questions and Answers
Description

INJIE 10000BDR-L Binocular Long-Range Laser Rangefinder


Precision Measurement for Distances up to 4000 Meters

The INJIE 10000BDR-L is a professional binocular long-range laser rangefinder, designed for outdoor, security, and industrial applications. It provides accurate distance measurement up to 4000 meters, allowing users to precisely monitor and assess distant targets.

Equipped with high-definition optical systems, dual eyepieces, and advanced laser technology, the 10000BDR-L delivers clear, sharp images even in low-light conditions. Its ergonomic and rugged design ensures reliable use in demanding environments.


Key Features

Long-Range Precision – Measures distances up to 4000 meters with high accuracy.

Dual Optical Eyepieces – Comfortable binocular viewing for extended observation.

High-Definition Optics – Sharp, clear images with multi-coated lenses for maximum light transmission.

Laser Measurement – Fast, safe, and precise distance readings.

Angle and Height Measurement – Supports target angle calculation and height estimation.

Ergonomic & Durable – Lightweight, portable, and rugged housing suitable for harsh environments.

Multi-Mode Operation – Distance, height, angle, and scanning measurement modes for versatile use.


Applications

Military and security observation, border and coastal patrol, public security, customs inspection, surveying, outdoor expeditions, and wildlife monitoring.


Technical Specifications (Example)

SpecificationDetails
Distance RangeUp to 4000 m
Measurement Accuracy±0.5–1 m (depending on mode)
Angle Range±90°
Angle Accuracy±1°
Laser Type905 nm (Class 1)
Magnification
Objective Lens Diameter24–35 mm (depending on model)
Exit Pupil Diameter3–5 mm
Eye Relief15–20 mm
Field of View6–7°
Display TypeReflective OLED or LCD
BatteryRechargeable 18650 battery or equivalent
WeightApprox. 220–250 g (without battery)
DimensionsApprox. 100 × 100 × 50 mm
Protection RatingIP66


Package Contents

  • INJIE 10000BDR-L Binocular Long-Range Laser Rangefinder

  • Lanyard / Neck Strap

  • Lens Covers

  • Cleaning Cloth

  • User Manual

  • Warranty Card

  • Battery ×1

  • Carrying Case

  • Retail Gift Box
