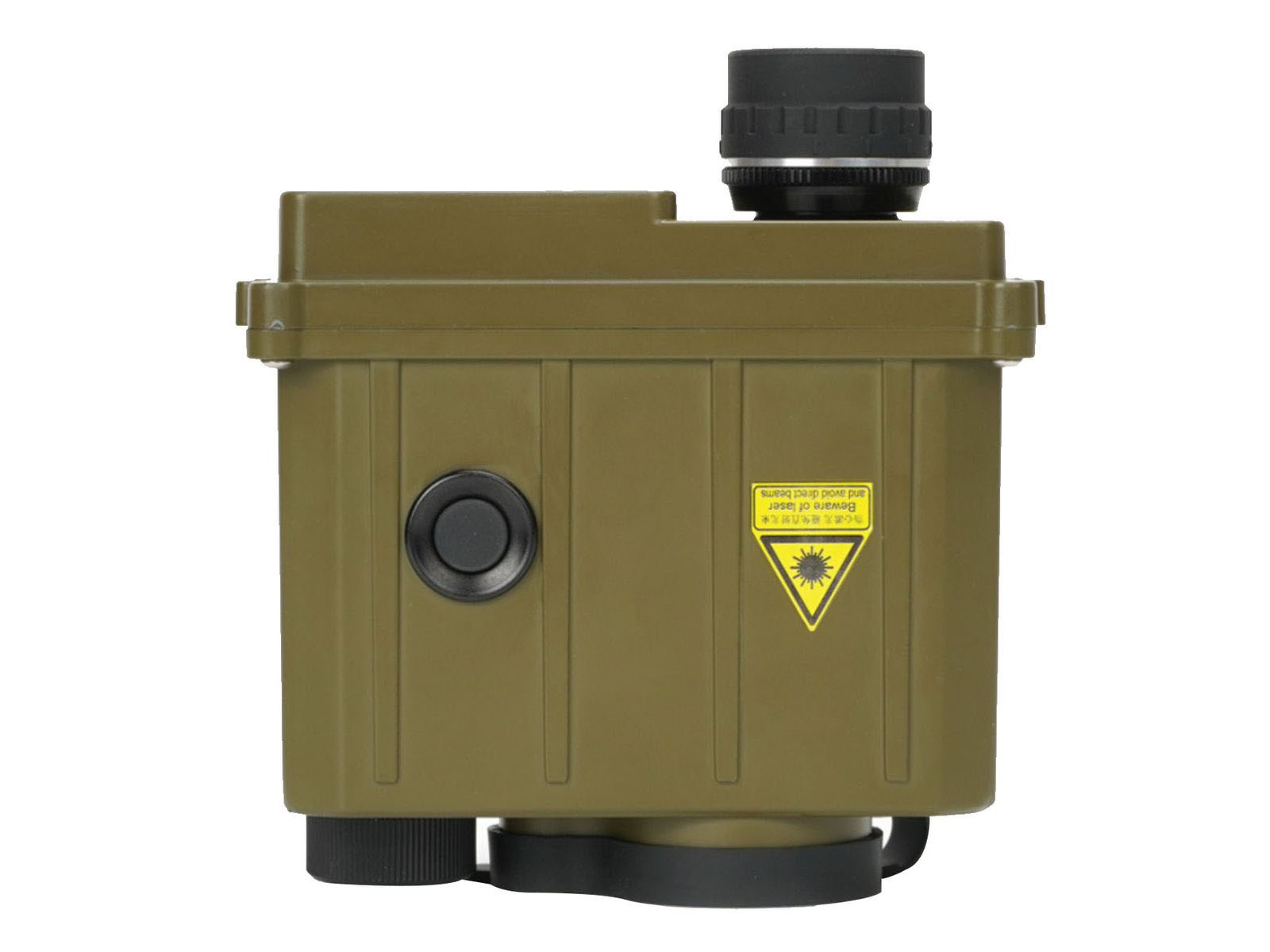

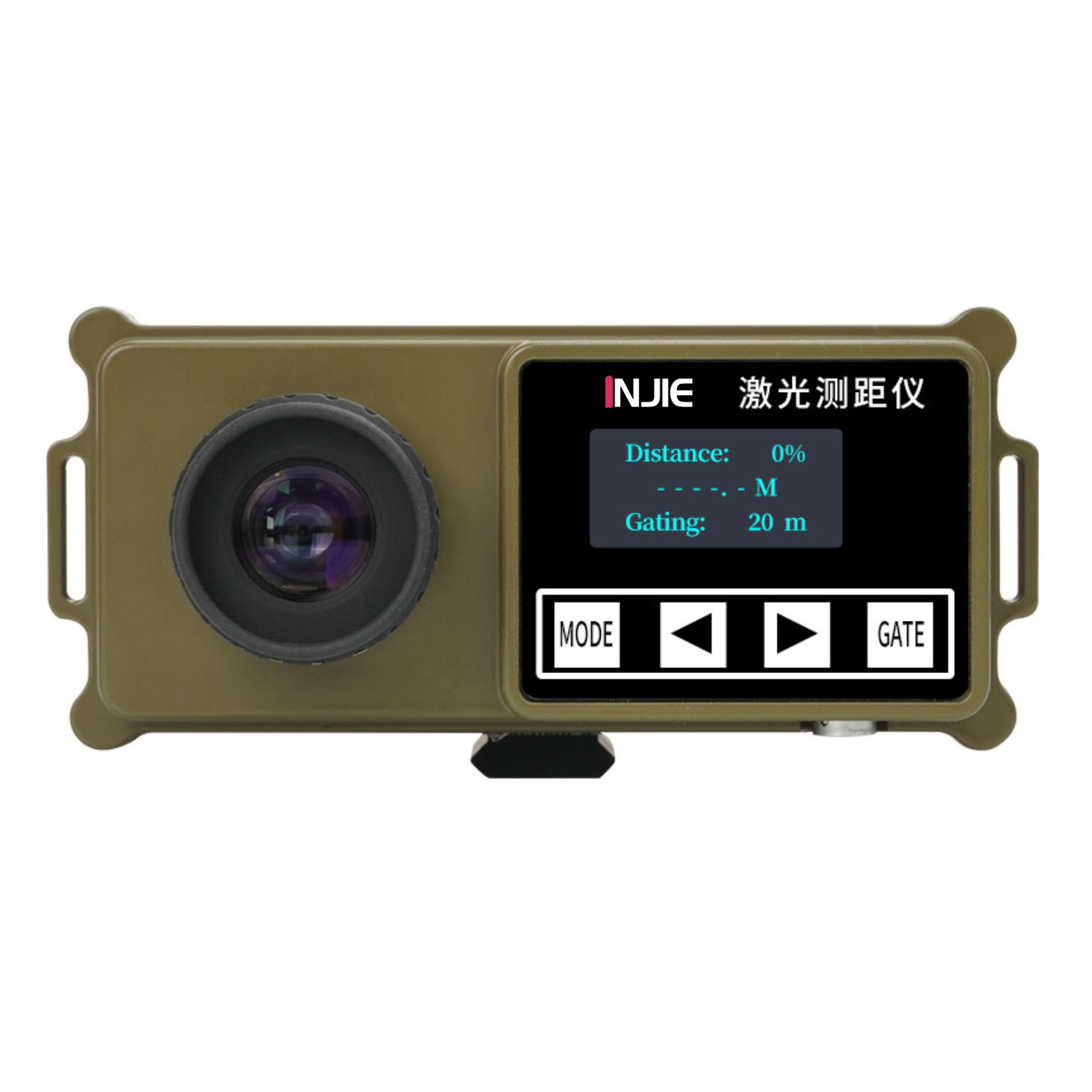

INJIE 6000LRT-X Monocular Laser Rangefinder
INJIE 6000LRT-X Monocular Laser Rangefinder – Long-Range up to 6,000 m
The INJIE 6000LRT-X adopts a single-eye dual-function optical path (receiving and aiming combined, independent laser emission) for fast measurement, automatic focusing, and precise distance calculation. It supports robust data storage and management functions, optional azimuth, Bluetooth, GPS, and tilt angle functions, and is highly portable. Ideal for river and channel surveying, construction, telecom, cable inspection, geological surveys, meteorology, airports, forestry, and outdoor observation.
Key Features
High-precision measurement: ±0.5 m.
Distance gating with minimum range setting; supports average distance calculation (AGV).
Standard RS232 interface; supports Bluetooth and PDA for data transfer.
Data management: store, view, send, retrieve, and delete measurements.
Optional GPS (Beidou) positioning.
Advanced auxiliary functions: gating, averaging, data storage, data transmission, data retrieval, serial number display, reticle brightness adjustment, and OLED backlight control.
Durable and weatherproof: dustproof, waterproof, and shock-resistant.
Compact, lightweight, and easy to carry.
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Source | Nd:YAG |
| Wavelength | 1064 nm |
| Output Energy | ≥5 mJ |
| Laser Lifetime | ≥20,000 shots |
| Measurement Range | 30–6,000 m |
| Measurement Accuracy | ±0.5 m |
| Distance Gating | 20–4,000 m (10 m increments) |
| Measurement Success Rate | 98% |
| Repeat Frequency | 1/10 (6 times/min) |
| Averaging Function | Yes |
| Data Storage | Up to 10 measurements |
| Data Transmission | RS232 (115200, 8, N, 1) |
| Display | OLED with reticle illumination; brightness adjustable; auto-off 30 s |
| Receiving Aperture | 31 mm |
| Field of View | 6.5° |
| Magnification | 7× |
| Operating Temperature | -40°C to +50°C |
| Dimensions | 60 × 130 × 139 mm |
| Weight | 635 g |
| Environmental Protection | Dustproof, waterproof, shockproof |
| Power Supply | 7.4V or 11.1V / 1000 mAh polymer lithium battery (≥2,000 measurements per charge) |
Mounting & Setup
Can be mounted via the 1/4-inch tripod screw or dovetail adapter for stable long-distance measurements.
Supports external triggering for remote distance measurement.
Battery & Charging
Uses 7.4V or 11.1V / 1000 mAh polymer lithium battery pack.
Charge batteries outside the device using the supplied charger.
Charging temperature: 0–40°C, relative humidity ≤80%.
Avoid contact with metal, fire, or water.
Store batteries in packaging when not in use.
Charging indicator: Red = charging, Blue = fully charged.
Package Contents
INJIE 6000LRT-X Rangefinder
Hard Carry Case
Charger
Battery Pack
External Trigger Cable
Cleaning Cloth
Certificate of Conformity
Warranty Card
User Manual
