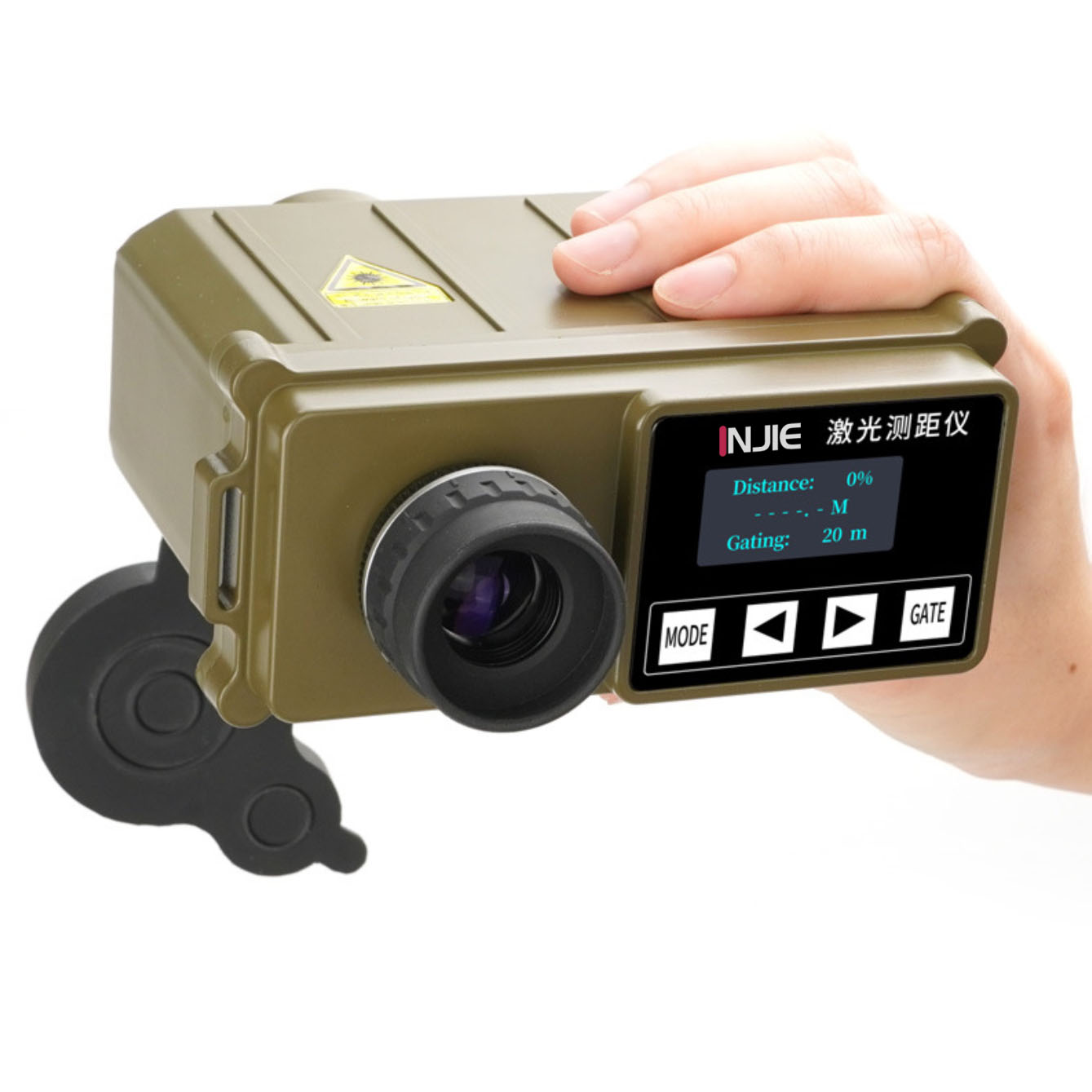

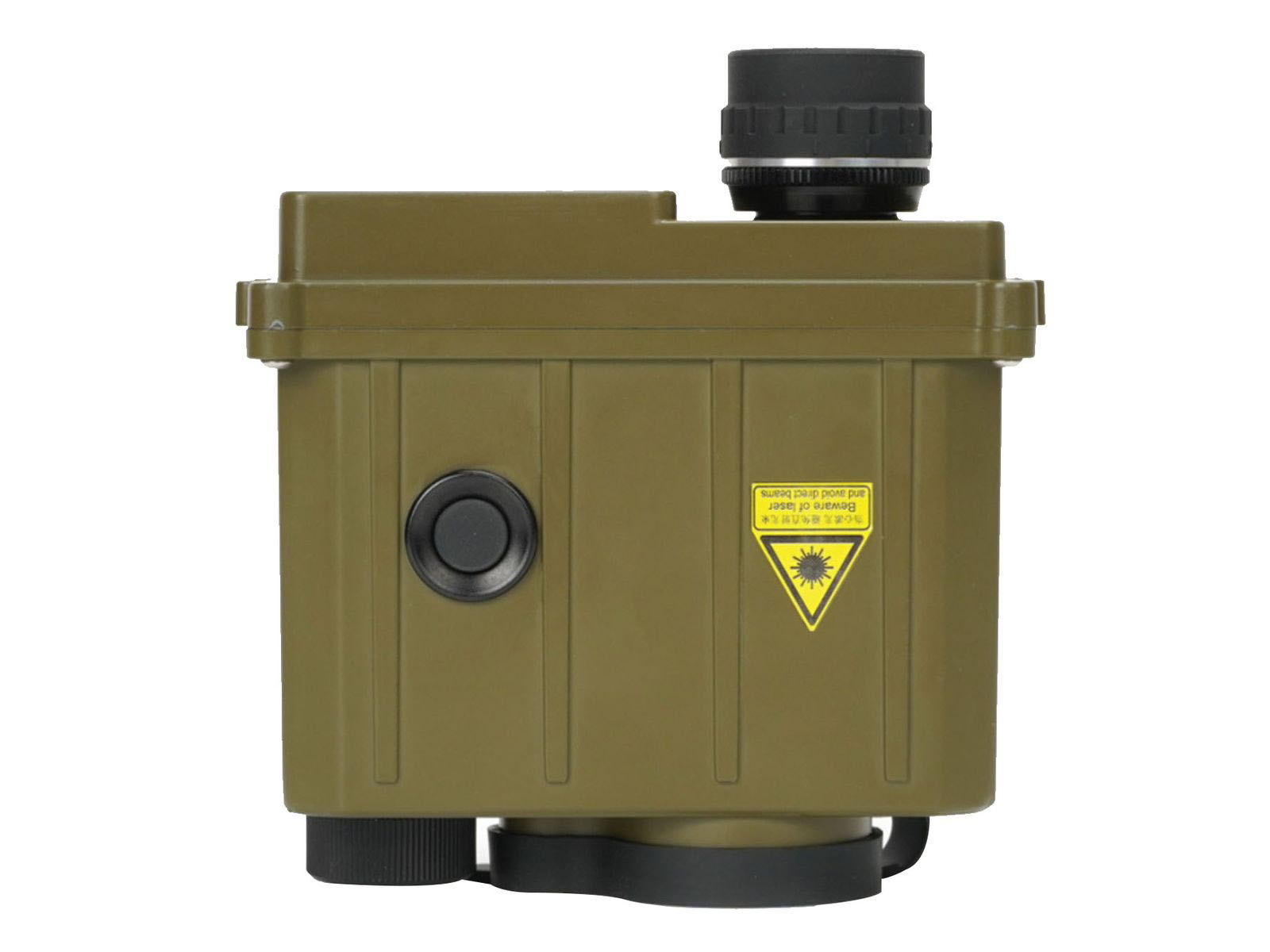

INJIE 5000LRT-X Monocular Laser Rangefinder – Long-Distance 4000m

The 5000LRT-X series adopts a monocular dual-path optical structure (receiving and aiming paths combined, laser emission path independent), enabling fast measurement, auto-focus, and precise distance calculation. It supports average distance calculation and robust data storage. Optional features include azimuth, Bluetooth, GPS positioning, and tilt angle. Compact and easy to operate, it is widely used in rivers, waterways, landmarks, telecommunications, cable lines, geological surveys, meteorology, airports, forestry, border security, construction, and outdoor distance measurement.

Product Features

High distance accuracy: ±0.5 m

Distance gating function with configurable minimum range channel

Average distance measurement function (AGV)

Standard RS232 interface; supports Bluetooth or PDA for data transfer

Data management: storage, viewing, sending, retrieval, deletion

Optional GPS (Beidou) positioning

Advanced auxiliary features: gating, averaging, data storage, data sending, data retrieval, serial number display, crosshair brightness adjustment, OLED backlight adjustment

Durable and rugged: dustproof, waterproof, shock-resistant

Lightweight and portable, easy to operate

Key Technical Specifications

Parameter	Specification
Laser Type	Nd:YAG
Wavelength	1064 nm
Output Energy	≥5 mJ
Laser Lifetime	≥20,000 measurements
Measurement Range	30–4000 m
Distance Accuracy	±0.5 m
Distance Gating	20–4000 m (step 10 m)
Measurement Rate	98%
Repeat Frequency	1/10 (6 times/min)
Average Measurement	Supported
Data Storage	10 measurement records
Data Output	RS232 (115200, 8, N, 1)

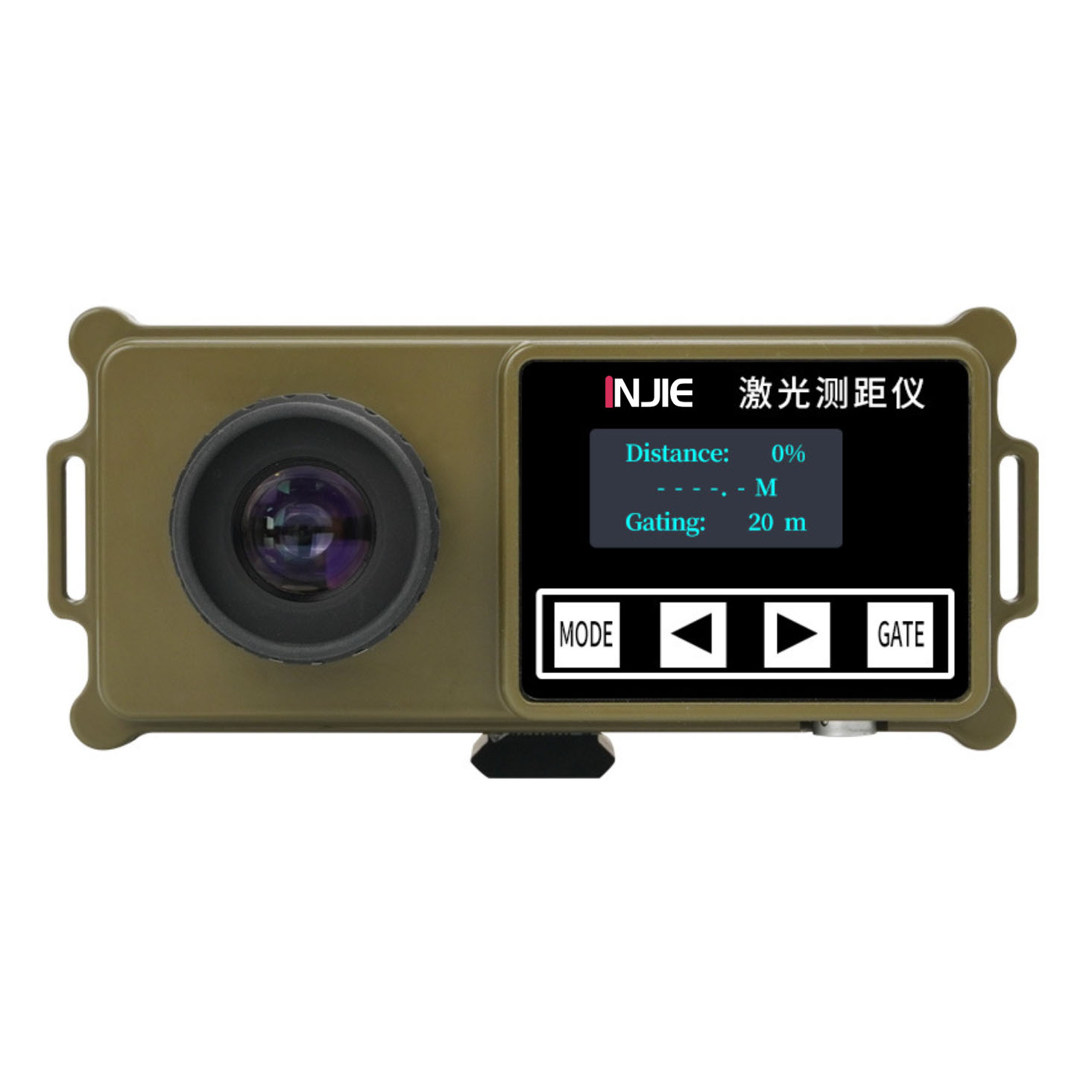

Display	OLED with reticle illumination and brightness adjustment; auto-off after 30s idle
Receiving Aperture	Φ31 mm
Field of View	6.5°
Magnification	7×
Operating Temperature	-40℃ ~ +50℃
Dimensions	60 × 130 × 139 mm
Weight	635 g
Power Supply	7.4V or 11.1V / 1000mAh polymer lithium battery (≥2000 measurements per full charge)
Environmental Resistance	Dustproof, waterproof, shock-resistant

Mounting & Usage

Can be mounted on a 1/4-inch tripod screw for stable measurements

Compatible with dovetail adapters for theodolites, supporting remote measurement via external trigger cable

Battery & Charging

Uses 7.4V or 11.1V / 1000mAh polymer lithium battery

Charge or replace the battery when low-voltage warning appears

Charging method: remove battery and use supplied charger

Charging indicator: Red = charging, Blue = fully charged

Recommended charging environment: 0–40℃, relative humidity ≤ 80%

Safety precautions: avoid short circuit, fire, moisture

Package Contents

Carrying case
5000LRT-X rangefinder
Charger
Battery pack
External trigger cable
Lens cleaning cloth
Certificate of conformity
Warranty card
User manual
