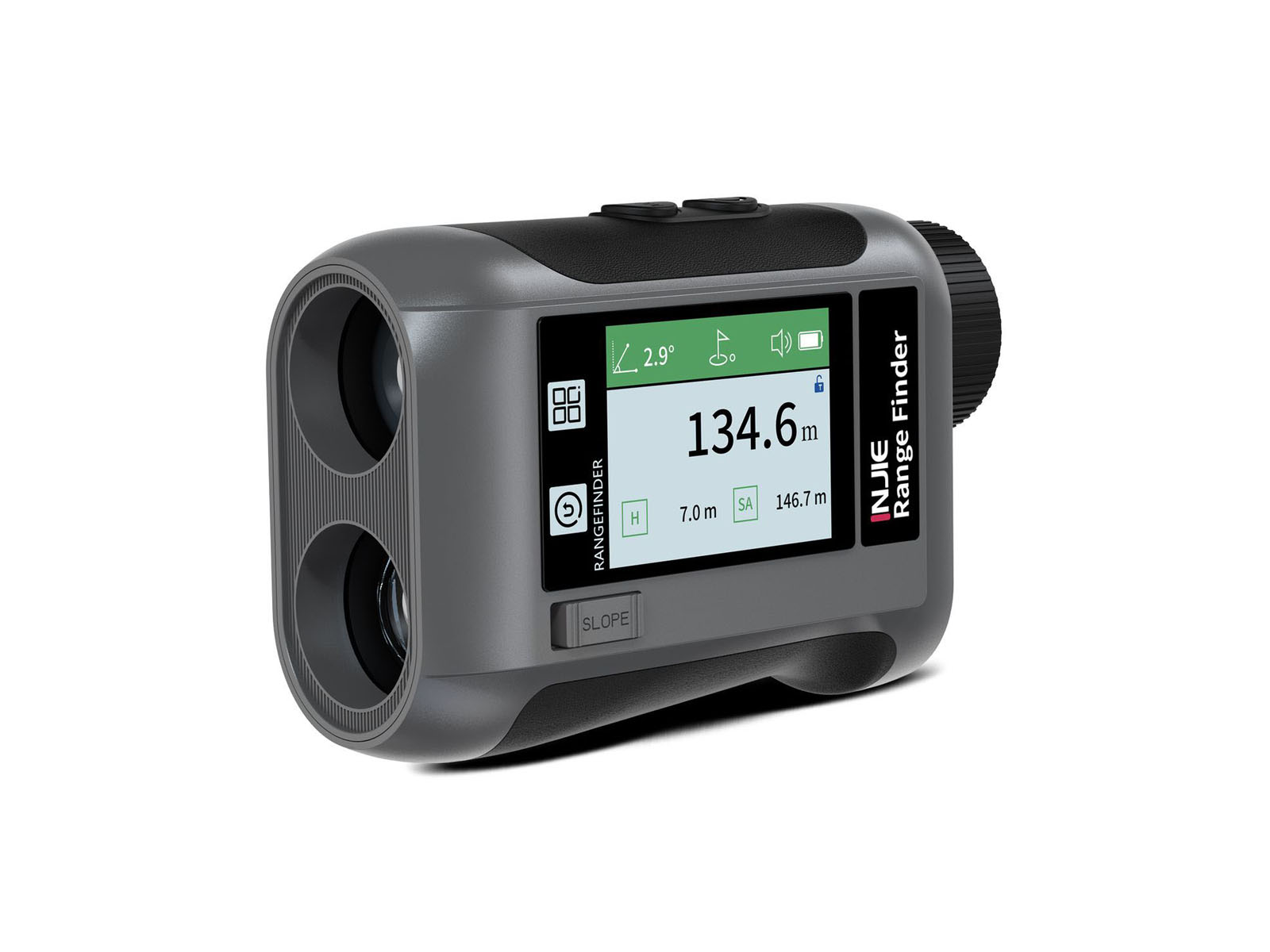

INJIE 1200LXT-Pro Laser Rangefinder – Telescope & Multi-Function Measurement Device
INJIE 1200LXT-Pro Laser Rangefinder – Telescope & Multi-Function Measurement Device
Functions
Telescope + Laser Rangefinder
Height Measurement
Angle Measurement
Speed Measurement
Single Measurement
Continuous Measurement
Automatic Horizontal Measurement
The INJIE 1200LXT-Pro is a portable electro-optical instrument that combines a telescope with a laser rangefinder, providing fast and accurate distance measurements. It is widely used in surveying, power inspection, security, marine observation, forestry, outdoor hunting, golf, and field exploration. This instrument greatly improves work efficiency with precise measurements and versatile functions.
Applications
Surveying and mapping
Power infrastructure inspection
Security and surveillance
Marine observation
Forestry and environmental monitoring
Outdoor hunting
Golf course applications
Field exploration
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1200LXT-Pro |
| Measurement Range | 3–500 m |
| Units | Meters (m), Yards (Yd) |
| Distance Accuracy | ±0.3 m |
| Angle Accuracy | ±1° |
| Laser Wavelength | 905 nm |
| Angle Measurement Range | -90° to +90° |
| Ballistic Compensation Angle | -20° to +20° |
| Eye Safety | FDA (CFR21) |
| Field of View | 7° |
| Magnification | 8× |
| Objective Lens Diameter | 22 mm |
| Eyepiece Diameter | 16 mm |
| Exit Pupil | 3.7 mm |
| Diopter Adjustment | ±5 D |
| Operating Temperature | -10°C to +50°C |
| Speed Measurement Range | 18–300 km/h |
| Display | Through-type LCD |
| Bluetooth | Available on Bluetooth version only |
| Weight (without battery) | 223 g |
| Dimensions | 118 × 79 × 42 mm |
| Tripod Mount | ✔ |
| Two-Point Height Measurement | ✔ |
| Continuous Measurement | ✔ |
| Flagpole Scanning (near-priority) | ✔ |
| Angle Measurement | ✔ |
| Speed Measurement | ✔ |
| Angle Sensor Switch | ✔ |
| Golf Ballistic Compensation | ✔ |
| Automatic Horizontal Mode | ✔ |
| Area Measurement Mode | ✔ |
| Volume Measurement Mode | ✔ |
| External Display | ✔ |
| External Display Switch | ✔ |
