Laser Rangefinder

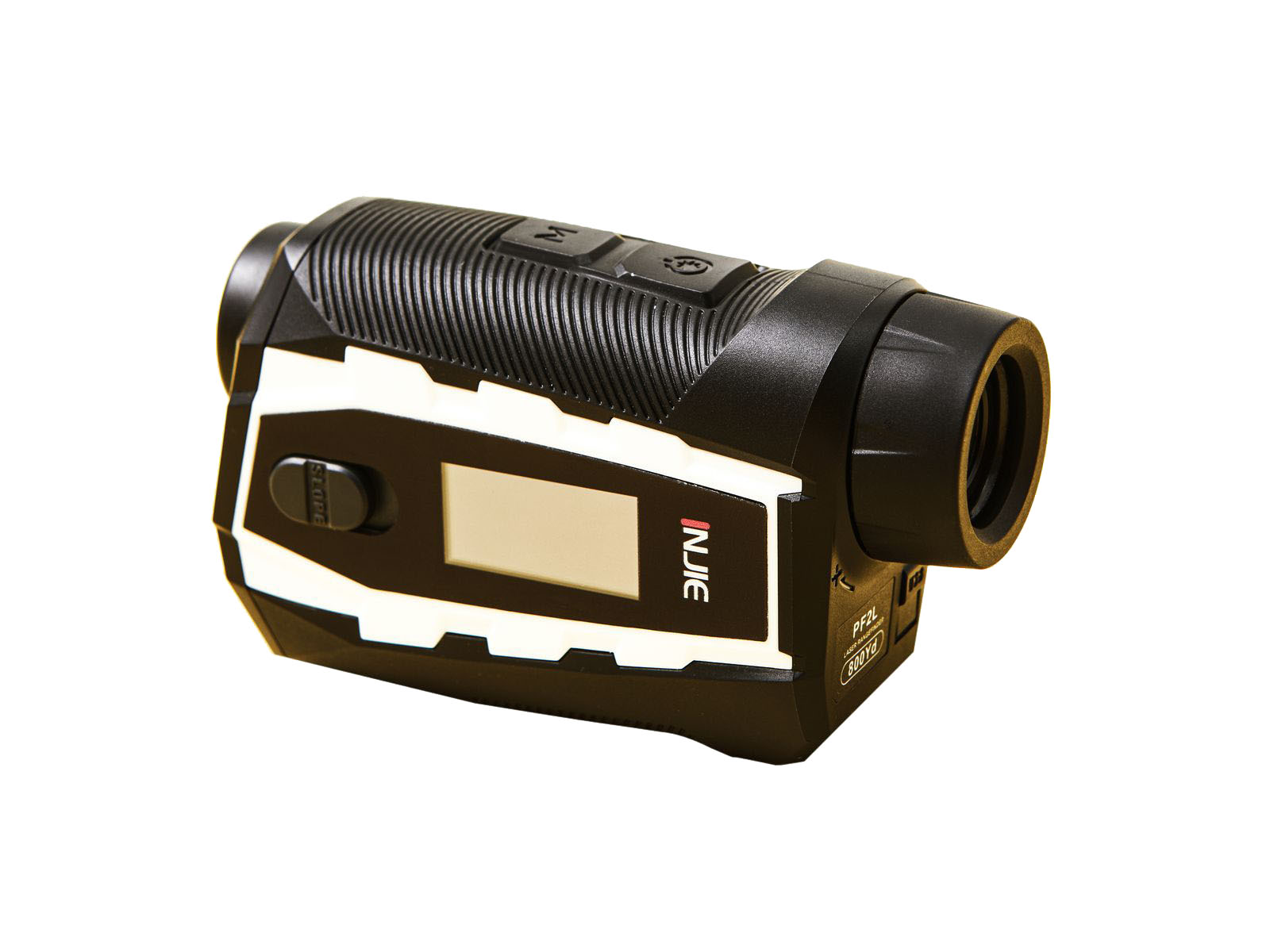

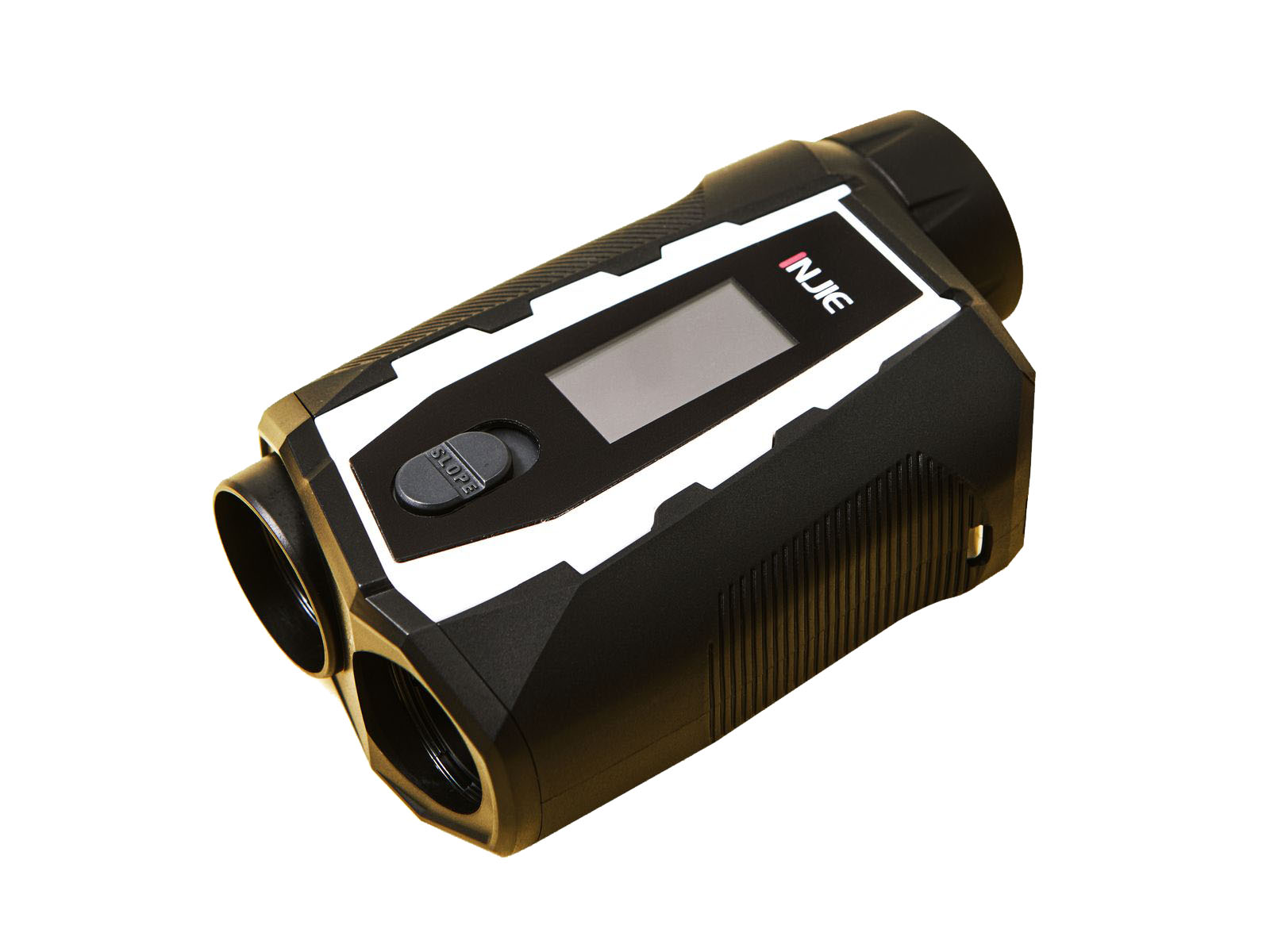

INJIE 1500LDR Laser Rangefinder

The INJIE 1500LDR is a portable electro-optical instrument combining a telescope with a laser rangefinder, offering fast and accurate distance measurements. It is ideal for surveying, power inspection, security, marine observation, forestry, outdoor hunting, golf, and field exploration, significantly improving efficiency and precision in professional and outdoor applications.
Description Questions and Answers
Description

INJIE 1500LDR Laser Rangefinder – Telescope & Multi-Function Measurement Device


Functions:

  • Telescope + Laser Rangefinder

  • Height Measurement

  • Angle Measurement

  • Speed Measurement

  • Single Measurement

  • Continuous Measurement

  • Automatic Horizontal Measurement


The INJIE 1500LDR is a portable electro-optical instrument combining a telescope with a laser rangefinder, offering fast and accurate distance measurements. It is ideal for surveying, power inspection, security, marine observation, forestry, outdoor hunting, golf, and field exploration, significantly improving efficiency and precision in professional and outdoor applications.


Applications

  • Surveying and mapping

  • Power infrastructure inspection

  • Security and surveillance

  • Marine observation

  • Forestry and environmental monitoring

  • Outdoor hunting

  • Golf courses

  • Field exploration


Technical Specifications

ParameterSpecification
Model1500LDR
Measurement Range3–600 m
UnitsMeters (m), Yards (Yd)
Distance Accuracy±0.3 m
Angle Accuracy±1°
Laser Wavelength905 nm
Angle Measurement Range-90° to +90°
Ballistic Compensation Angle-20° to +20°
Eye SafetyFDA (CFR21)
Field of View
Magnification
Objective Lens Diameter22 mm
Eyepiece Diameter16 mm
Exit Pupil3.7 mm
Diopter Adjustment±5 D
Operating Temperature-10°C to +50°C
Speed Measurement Range18–300 km/h
DisplayThrough-type LCD
BluetoothAvailable only on Bluetooth version
Weight (without battery)223 g
Dimensions118 × 79 × 42 mm
Tripod Mount
Two-Point Height Measurement
Continuous Measurement
Flagpole Scanning (Near-Priority)
Angle Measurement
Speed Measurement
Angle Sensor Switch
Golf Ballistic Compensation
Automatic Horizontal Mode
Area Measurement Mode
Volume Measurement Mode
External Display
External Display Switch
